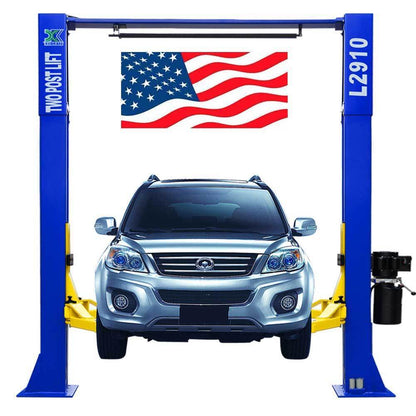

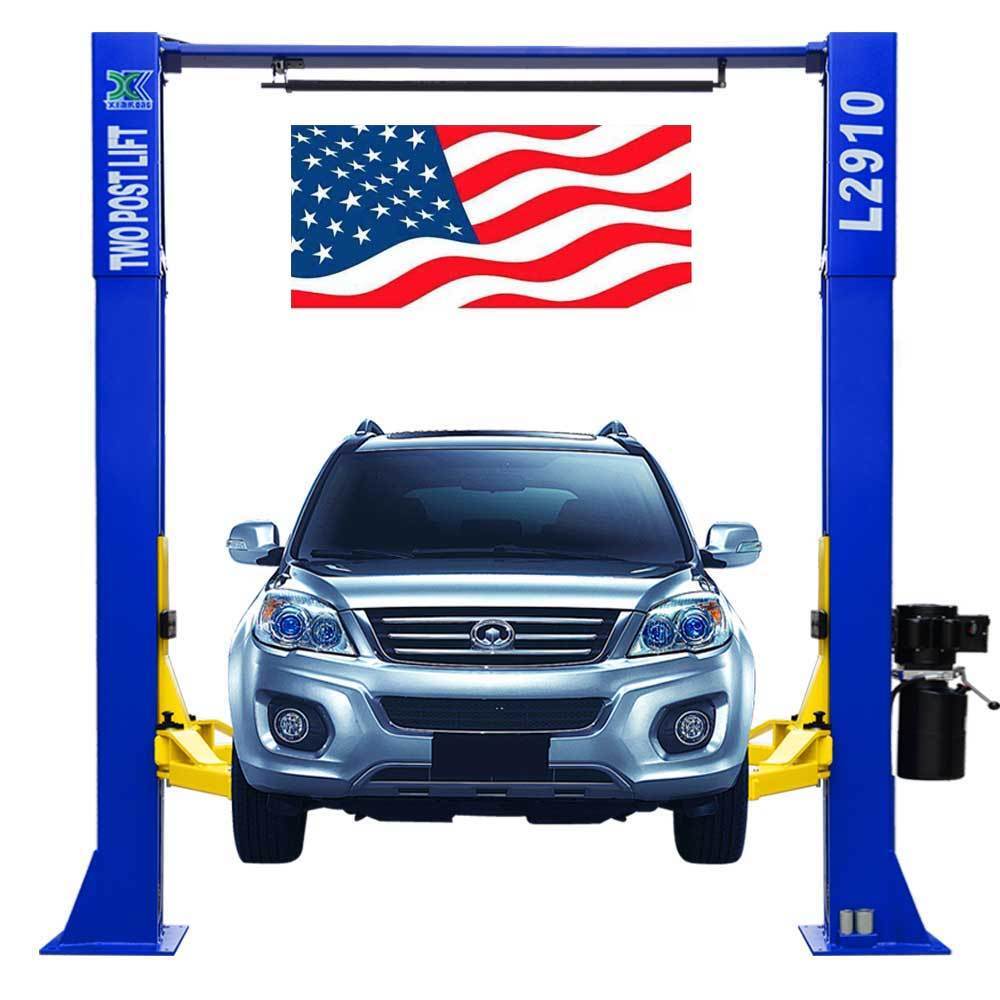

9,000 LB OVER HEAD L 2910 2 Post Lift 220V

Warranty:

• 12 months warranty on all metal parts, pneumatic parts, electrical parts and motors! When you choose us, you will get the BEST warranty on eBay.
• Most of the sellers don't provide or only provide warranty for those parts for 3 or 6 months, 1 year at most. Please compare with others before you make the decision. Get into our shop and you will see the details of terms and conditions, especially the best warranty!

Factory Defective Items:

• Refunds issued for defective items will be for the full purchase price of the item.
• If a replacement is requested, there will be no additional cost for shipping the replacement if your item is found to be defective

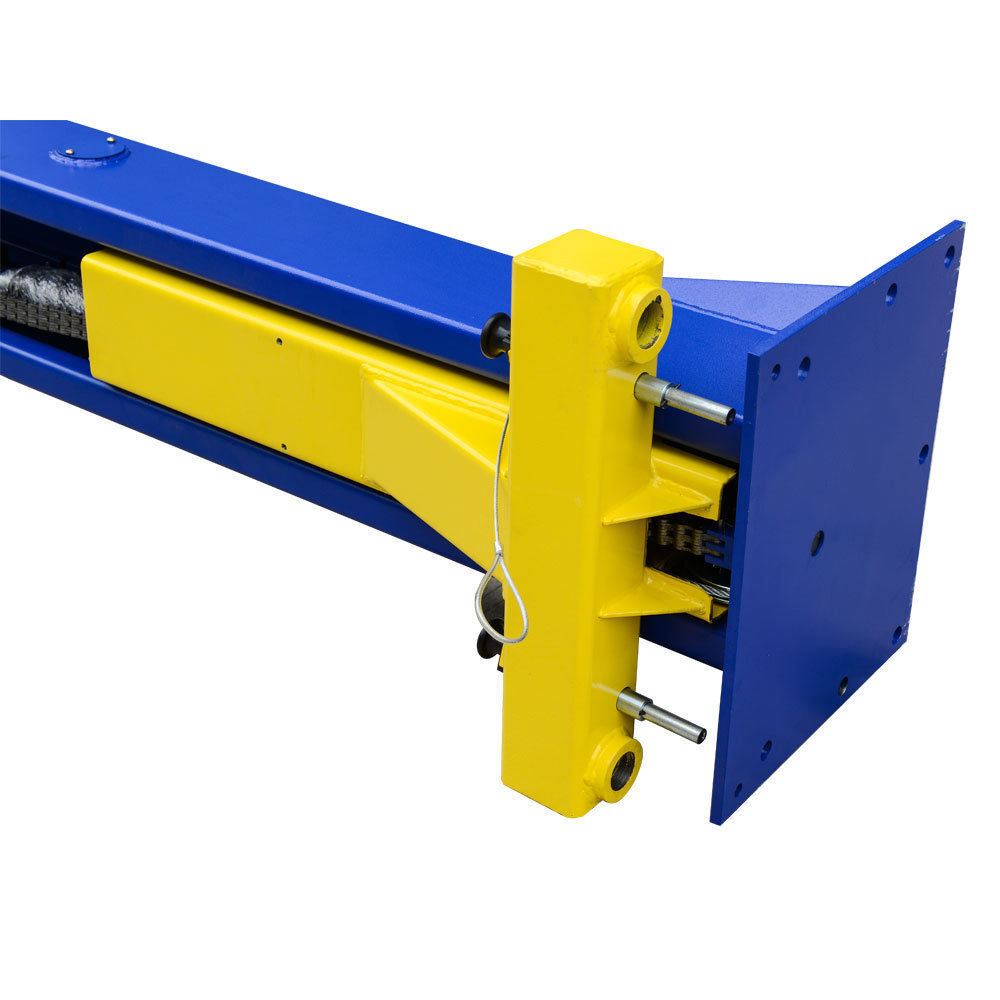

Auto Car Lift  L 2910

Features:   220V  60HZ  1PH   3HP MOTOR

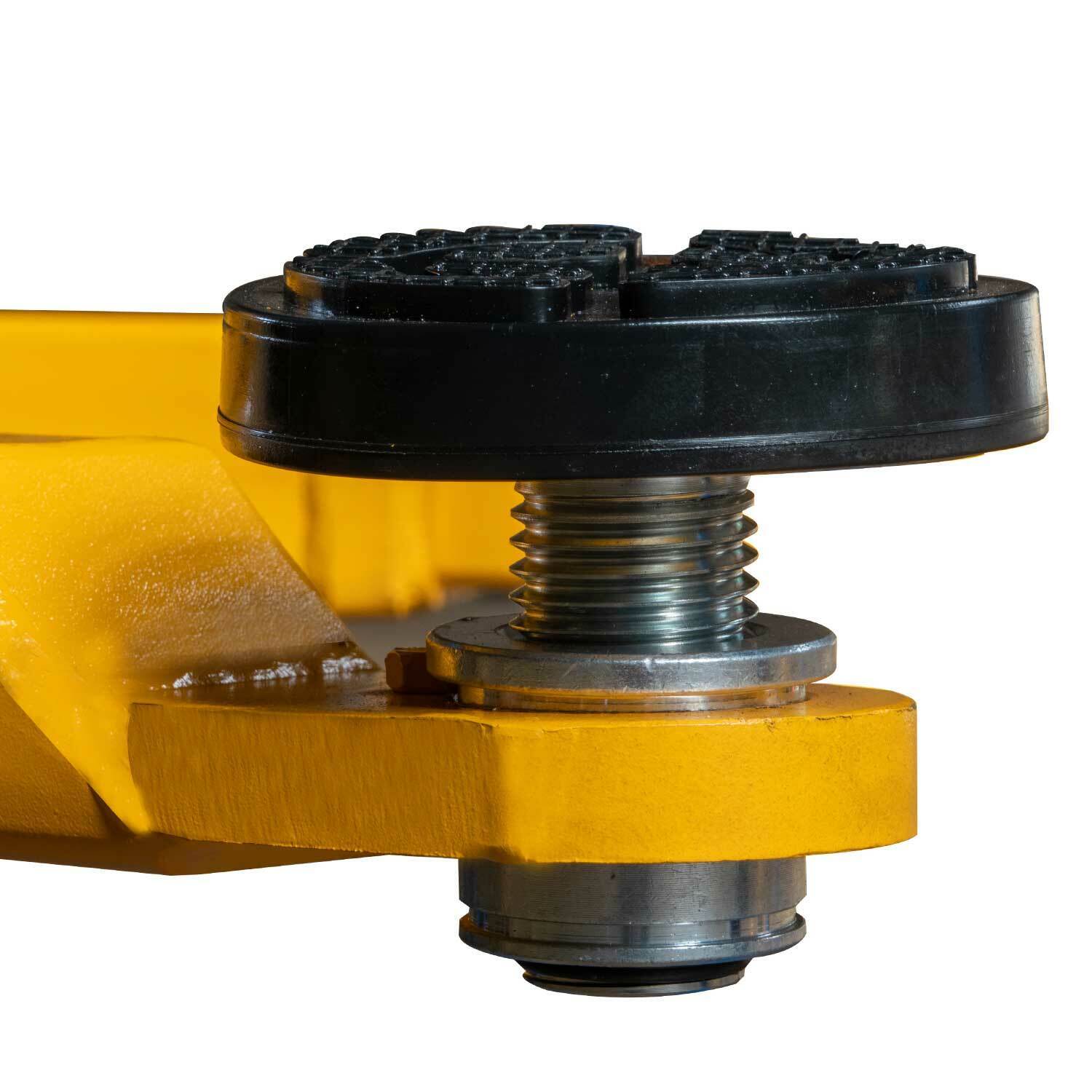

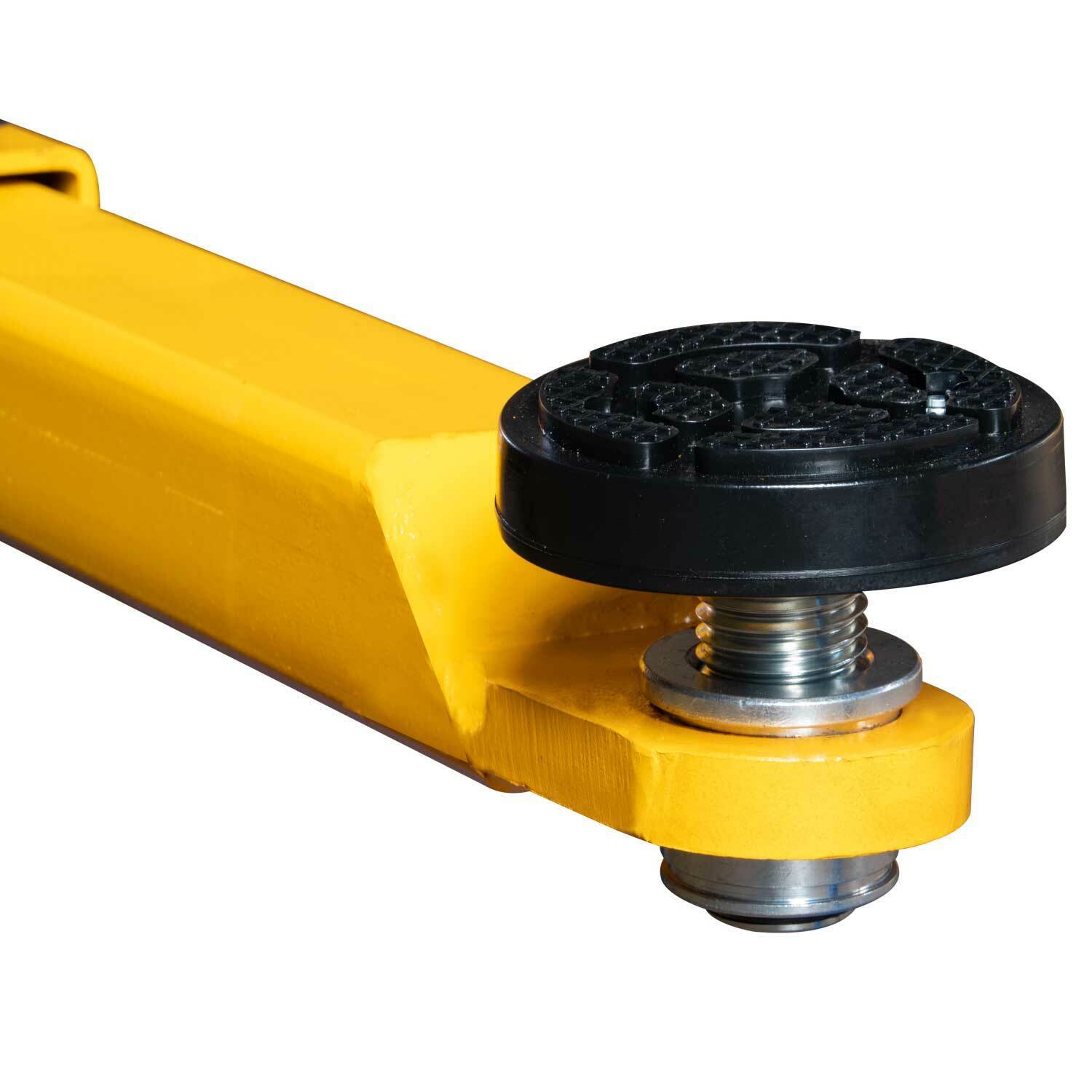

Come with adjustable pads. Free truck adapters.

Safety Mechanism:

•Double Point Safety Lock Release

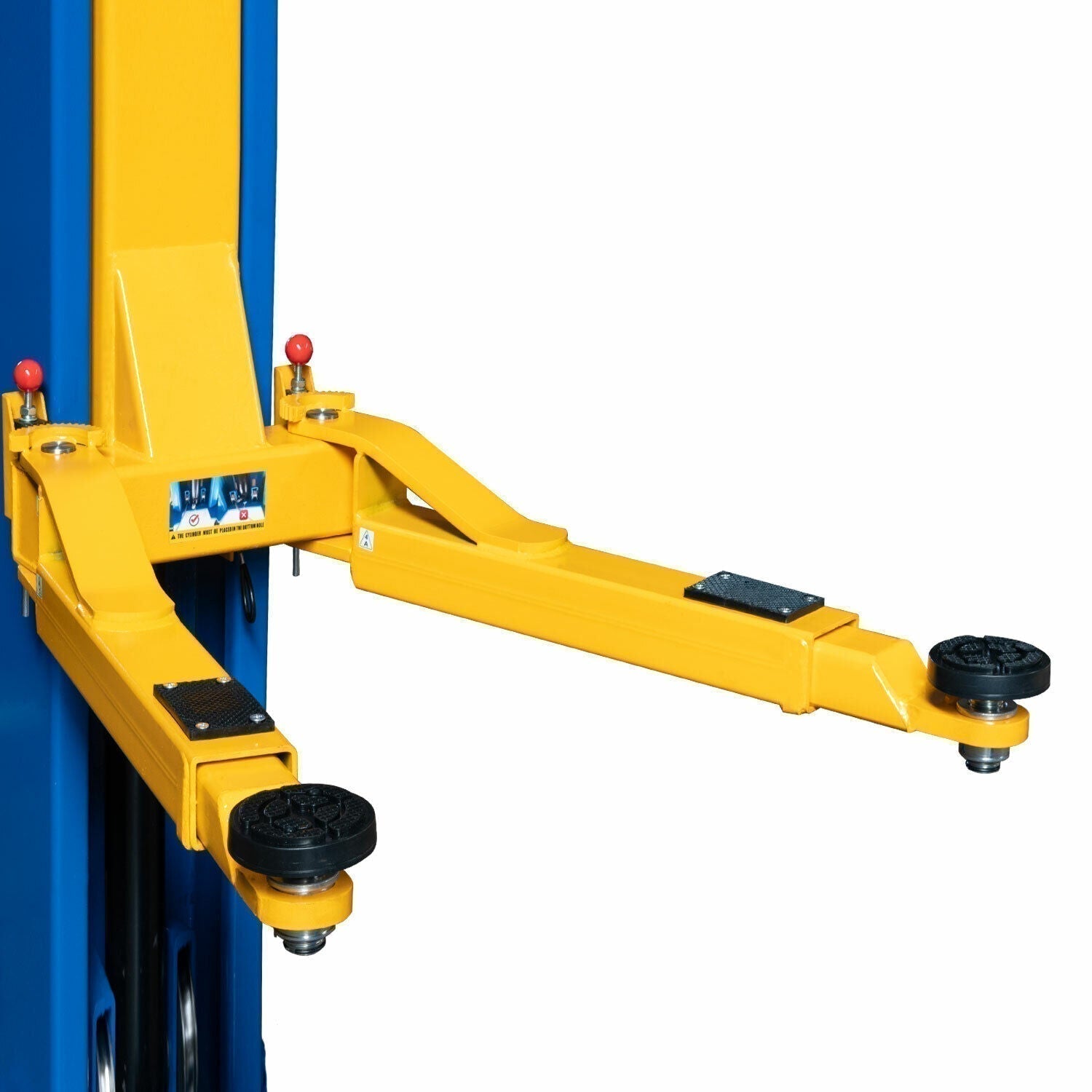

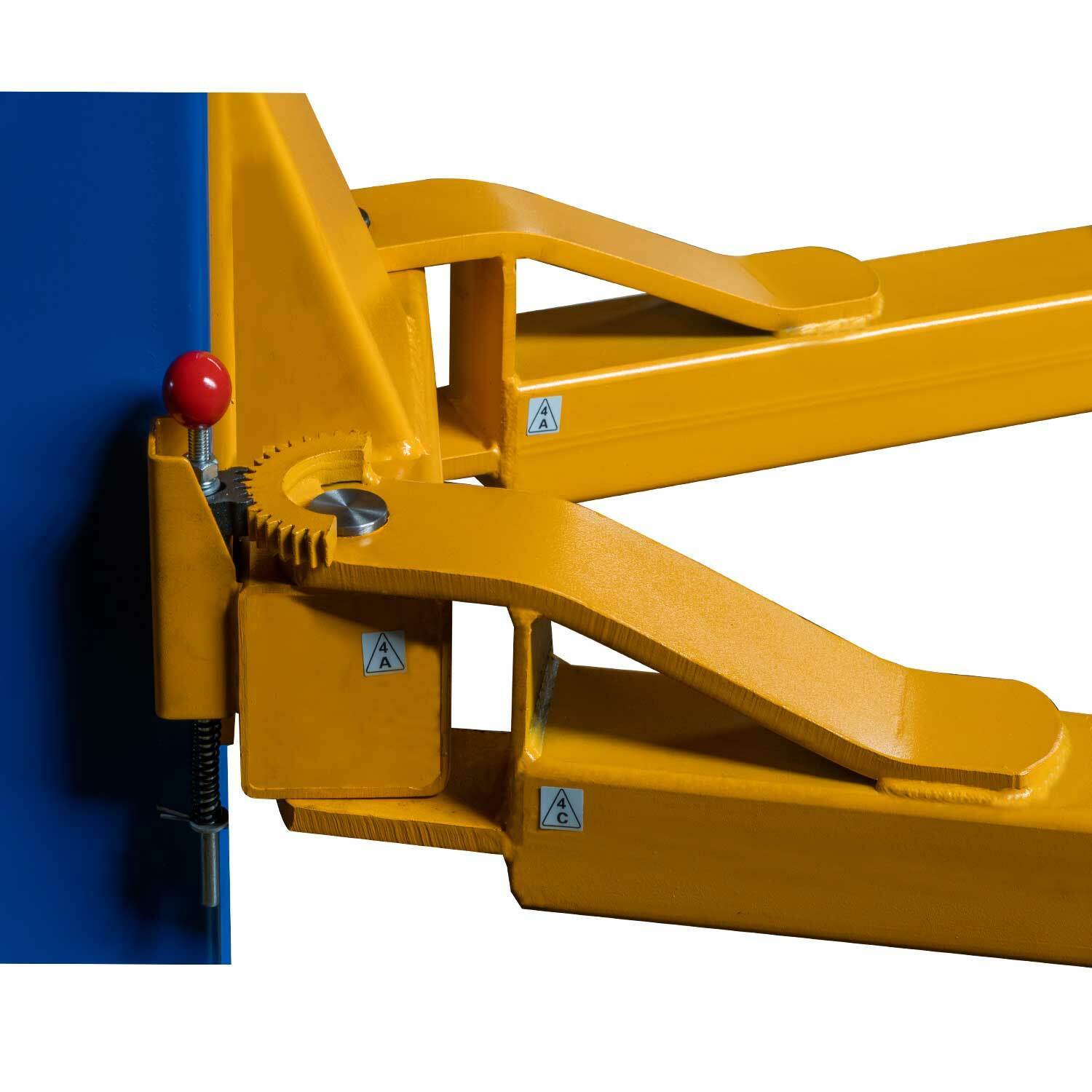

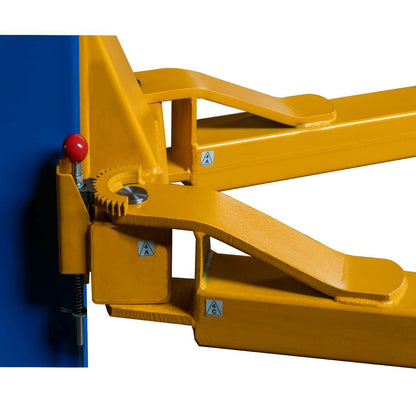

•Automatic arm lock restraints

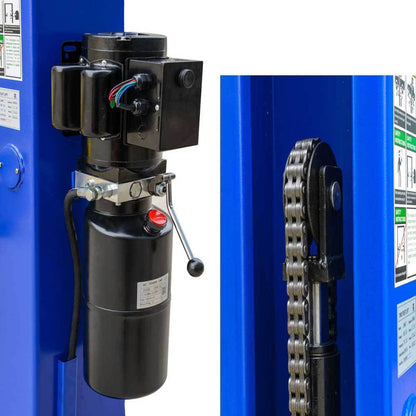

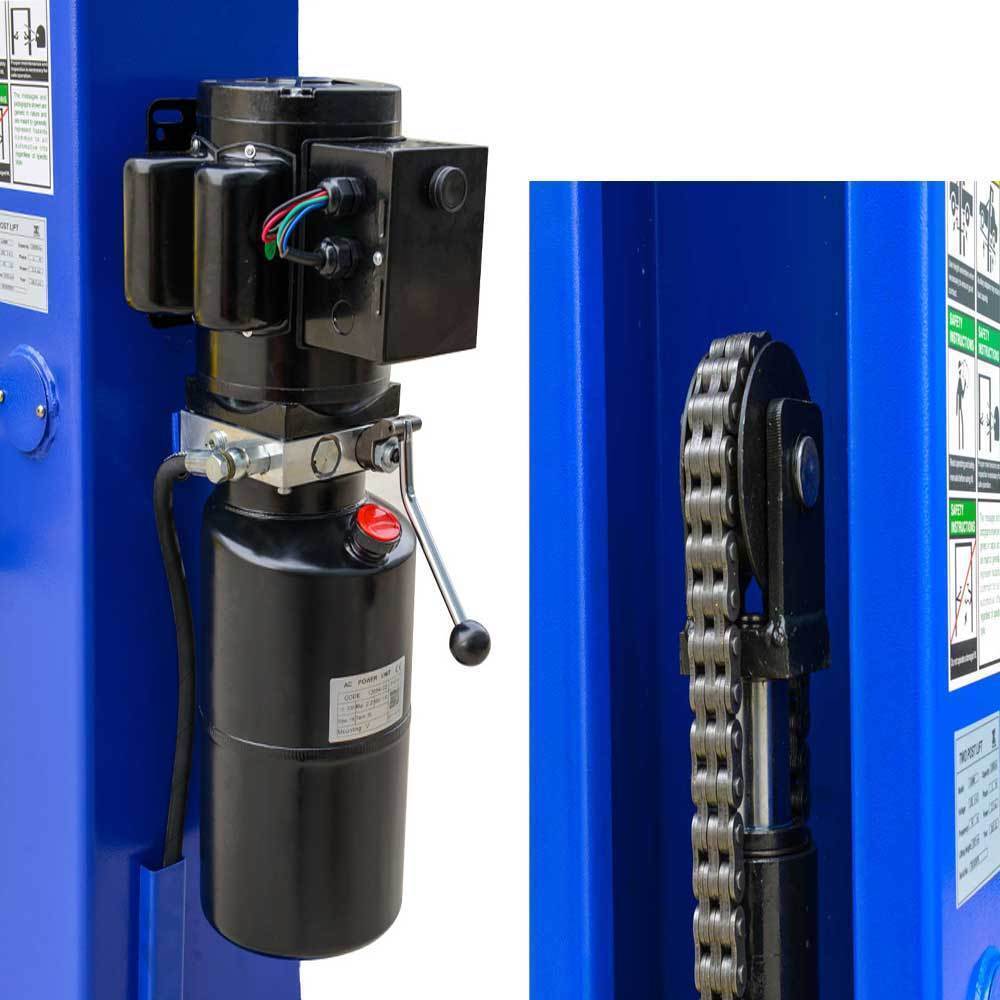

•Relief valve built in power pump to prevent overloading

•Door guards protection rubber

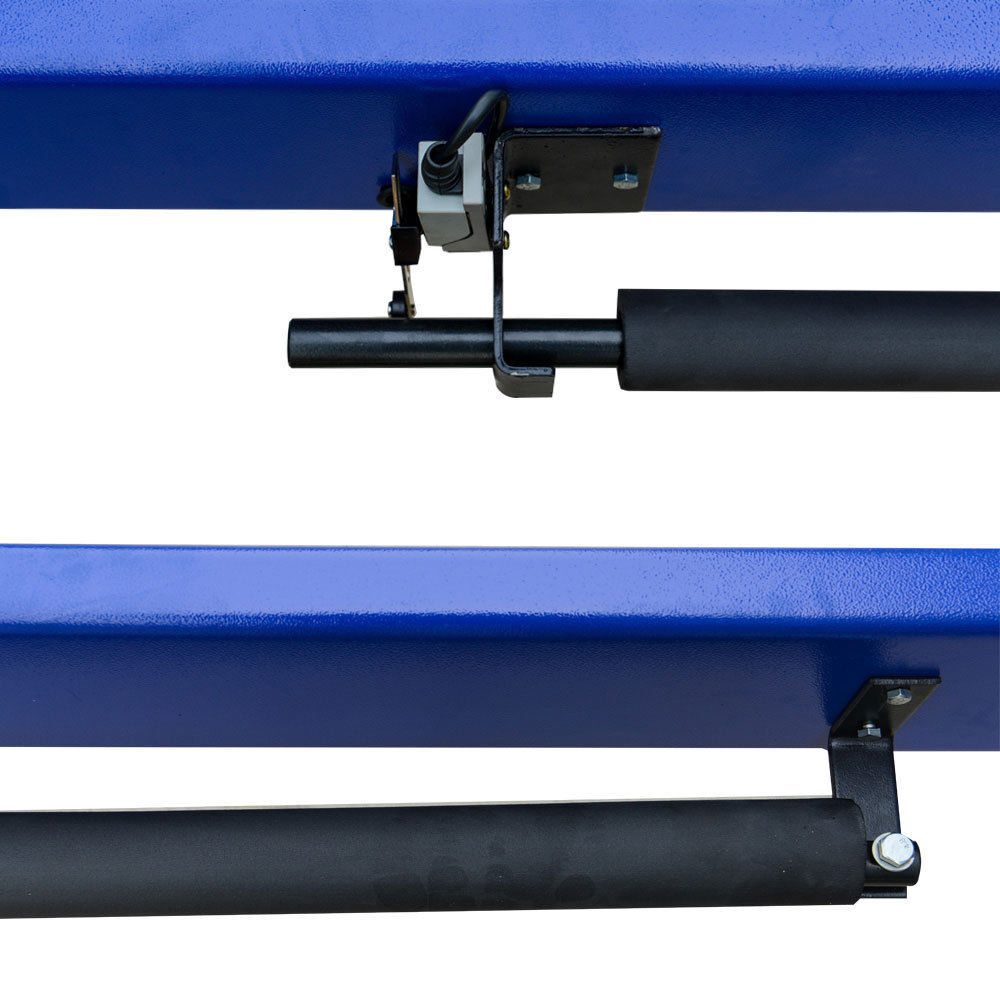

•Up-limit switch to protect cylinders working stroke used in safe length scope

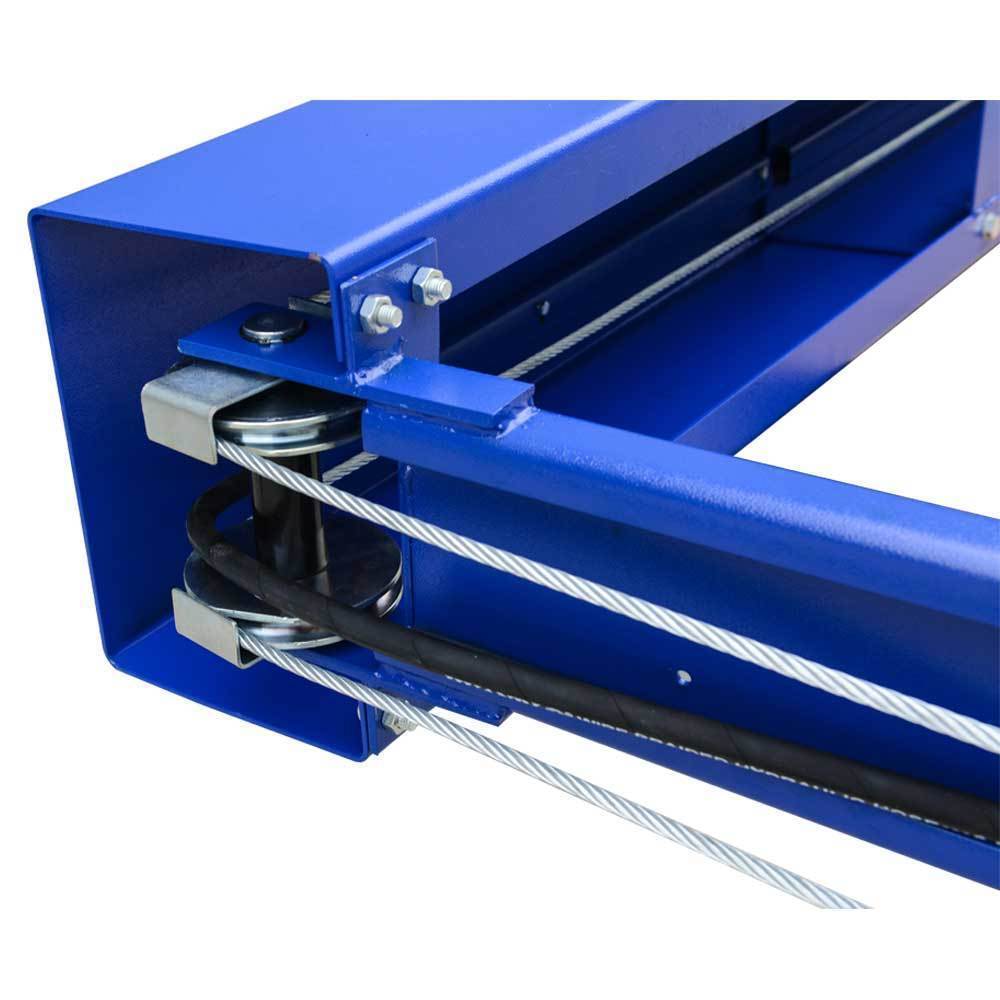

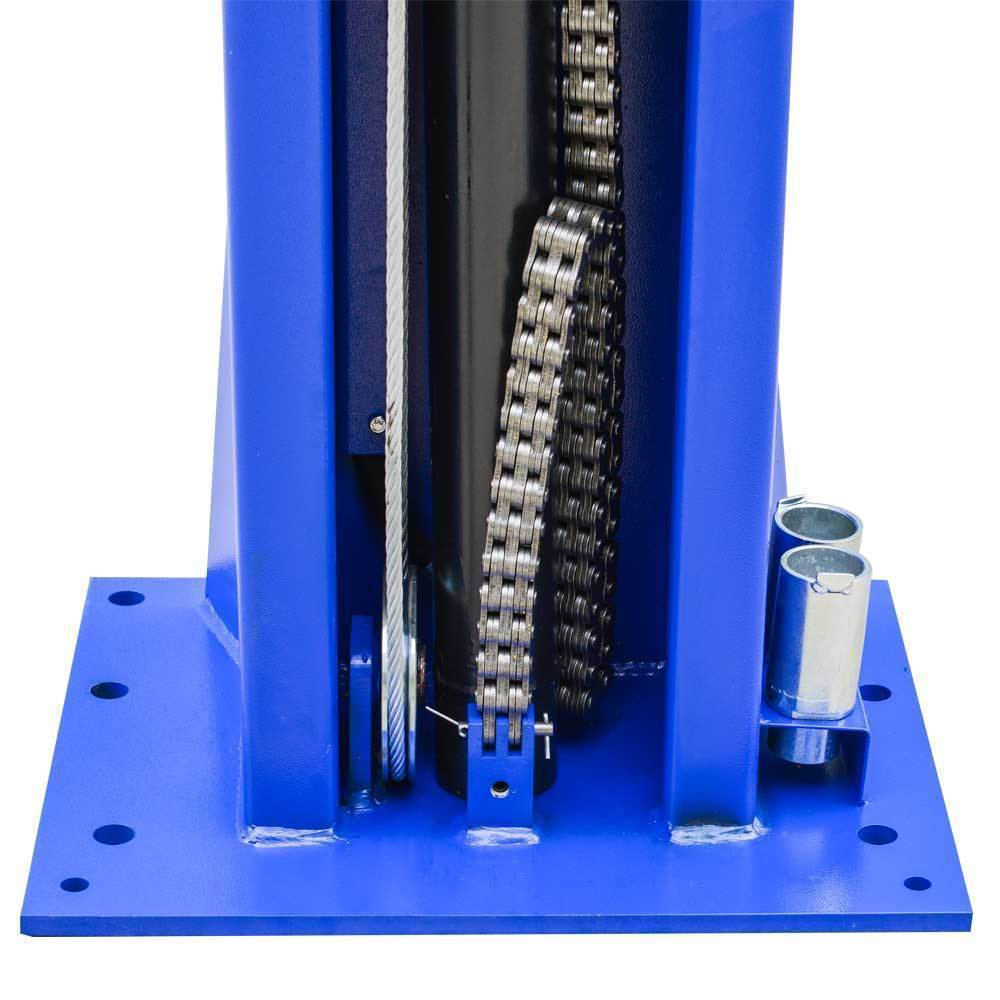

•Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life

•Stiffened base plate 15/32" thickness

•Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down

•Anchor bolts/mounting hardware included

Control System

•Lifting operation by pressing "UP" button on motor
•Manual lowering operation by pressing lever
•Relief valve built in power pump to prevent overloading

•Lifting Capacity: 9,000 lbs
•The overall Height  145 21/32"
•The overall Width  133-1/4"
•Column Width    10.59"

.Distance between 2 post  106"

Overall width 131-1/2"

•Base Width   14-9/16"

•Column Thickness of Steel    11/64"
•Carriage Thickness of Steel   3/16"
•Arms Thickness of Steel     15/64"

•Front Arm    29.9"-47.2"

•Rear Arm     29.9"-47.2"

•Min pad height: 3-7/8"
•Lift height max without truck adapters: 74-13/16"

Lift height max with truck adapters: 78"
•Drive-thru width clearance: 99-7/32"
•Time to full rise: 55 sec
•Shipping Weight: 1370 lbs

Site Selection

Before installing your auto lift, check the following:

• Lift Location: Always use architect’s plans when available.  Check layout dimension against floor plan requirements making sure adequate space is available.  Your lift

requires a 220v, 30amp, single phase, grounded electrical source.  There should be room enough to operate the lift in a safe manner and without restrictions.

• Overhead Area: The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical lines, doors, lights, etc.

• Floor Area: Visually inspect the site where the lift is to be installed and check for cracked or defective concrete.

Floor Requirements

• A level floor is suggested for proper installation and level lifting.  Small differences in floor slopes may be compensated for by proper shimming.  If a floor is of questionable slope, consider a survey of the site and/or the possibility of pouring a new level concrete slab.

• New concrete must be adequately cured for at least 30 days.

DO NOT install auto lift on any asphalt surface or any surface other than concrete.

DO NOT install auto lift on expansion seams or on cracked or defective concrete.

DO NOT install auto lift on a second/elevated floor without first consulting building architect.

DO NOT install auto lift outdoors unless special consideration has been made to protect the power unit from inclement weather conditions.

Concrete Specifications

All models MUST be installed on 3,000 PSI reinforced concrete only.  Additional concrete requirements will vary by lift.

3,500 PSI 4" Thickness minimum
